GET api/TransferPlans/GenerateScheduleImage?id={id}&vesselId={vesselId}&start={start}

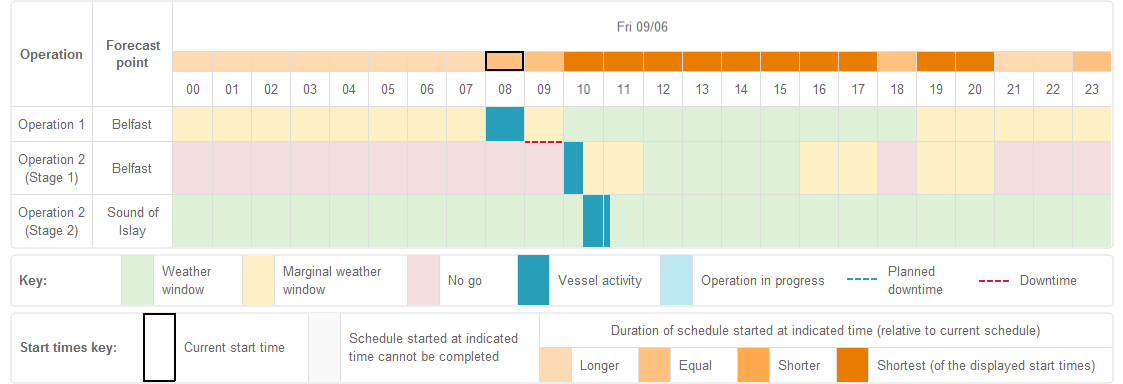

Generates and returns new image of a transfer plan schedule along with its ID. Archives the schedule image for later use.

Request Information

URI Parameters

NameDescriptionTypeAdditional information
id

The ID of a transfer plan.

 integer

Required
vesselId

The ID of a vessel in the transfer plan.

 integer

Required
start

The date and time at which the vessel will start its first operation.

 date

Required

Body Parameters

None.

Response Information

Resource Description

A complex object with an ID for the schedule and the PNG image as a Base64 encoded string.

ImageWithIdentifier
NameDescriptionTypeAdditional information
Id

integer

None.
ImageData

string

None.

Response Formats

image/png

Sample:

application/json, text/json

Sample:
{
  "Id": 1,
  "ImageData": "sample string 2"
}

application/xml, text/xml

Sample:
<ImageWithIdentifier xmlns:i="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://schemas.datacontract.org/2004/07/ForeCoastMarine.Core.OAndM">
  <Id>1</Id>
  <ImageData>sample string 2</ImageData>
</ImageWithIdentifier>
